Description

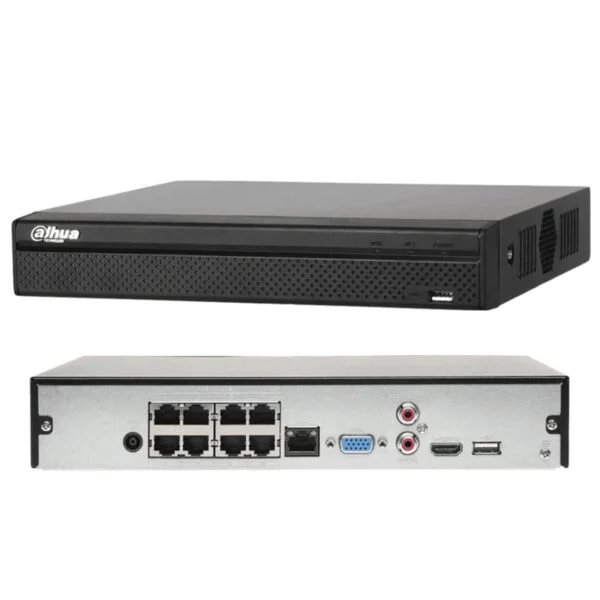

DHI-NVR1108HS-8P-S3/H(V2.0) Network Video Recorder (NVR)

DHI-NVR1108HS-8P-S3/H(V2.0) is a compact, reliable 8‑channel PoE Network Video Recorder ideal for small to medium sized surveillance systems. Combining intuitive operation with powerful recording performance and flexible connectivity, this NVR makes managing multiple IP cameras simple and efficient — perfect for offices, shops, homes, warehouses, and other security applications.


Key Features
  • 8 IP Camera Support: Records and manages video feeds from up to eight network cameras, covering multiple entry points and wide areas.
  • Integrated PoE (8P): Eight built‑in Power‑over‑Ethernet ports provide power and data over a single cable per camera, reducing wiring complexity and installation costs.
  • High‑Definition Recording: Supports recording from cameras up to 8 MP resolution for crisp, detailed surveillance footage.
  • Smart Compression: Uses Smart H.265+ / Smart H.264+ / H.265 / H.264 video compression to lower storage needs and network bandwidth without sacrificing quality.
  • Dual Video Output: HDMI and VGA outputs allow simultaneous local display on monitors or TVs at up to 1080p resolution.
  • Remote Monitoring: Access live view and playback on mobile devices with Dahua apps (iDMSS for iOS, gDMSS for Android) and through web browsers.
  • ONVIF & RTSP Support: Compatible with third‑party cameras that support ONVIF/RTSP standards, offering flexible camera choices.
  • User‑Friendly Interface: Local and web GUIs simplify system setup and management, including remote camera configuration and firmware updates.

Typical Specifications DHI-NVR1108HS-8P-S3/H(V2.0)
Feature Details
Channels 8 IP camera inputs (PoE enabled)
PoE Ports 8 × RJ‑45 PoE (802.3af/at), total PoE power up to 72 W
Video Resolution Up to 8 MP per channel
Compression Formats Smart H.265+, Smart H.264+, H.265, H.264
Recording Bandwidth 80 Mbps in / 80 Mbps recording / 60 Mbps out
Decode Capability 8 MP @ 30 fps (1 channel) or multi‑channel lower resolution decoding
Video Output 1 × HDMI + 1 × VGA (up to 1080p)
Storage 1 × SATA interface for HDD (supports up to ~8 TB)
Audio I/O 1 × RCA input / 1 × RCA output
Network Protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, DHCP, DNS, P2P
Mobile Access iDMSS (iOS), gDMSS (Android)
Operating System Embedded Linux
Dimensions Approx. 260 × 225 × 47.6 mm
Weight Approx. 0.84 kg
